Short Rise Access Lifts 0-1m
Quinn Lifts & Elevators

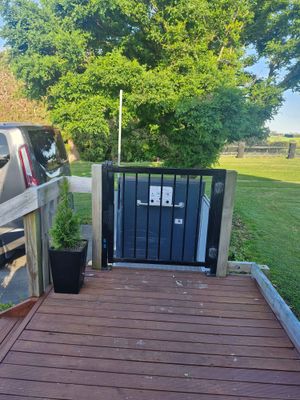

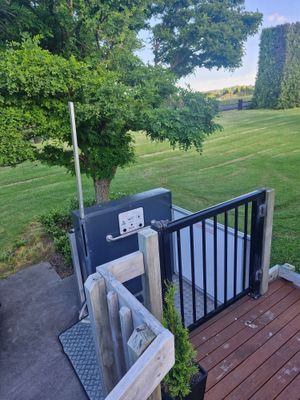

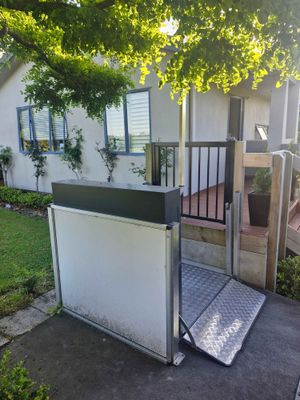

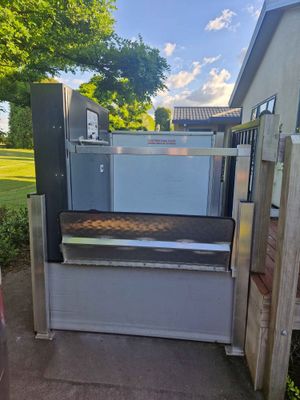

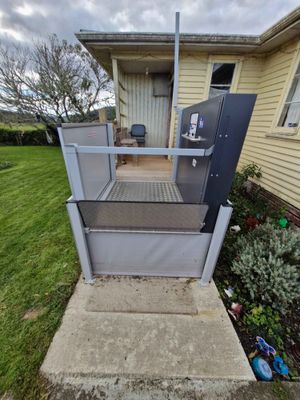

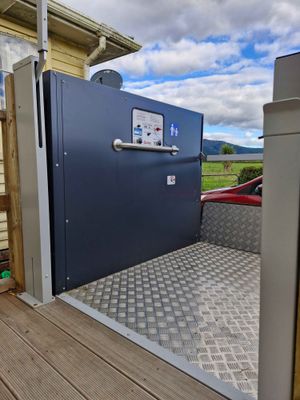

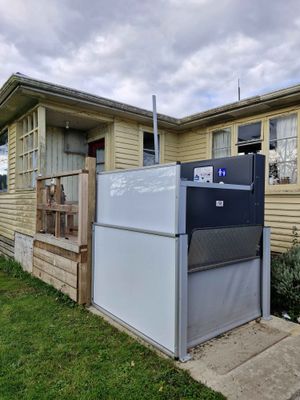

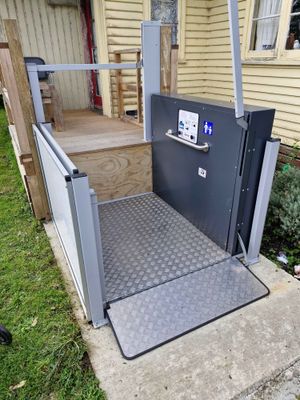

Our short rise lifts are designed to be free standing and portable. They rise to a level of 1m and are intended to provide easy wheelchair access from a driveway or path onto an external deck.
We have two models:
PLF312 - an external short rise scissor lift operating on 12 volt battery power so can be operated even if there is a power outage. It has a platform size of 1200mm x 1200mm and can carry up to 500kg to a height of 1m. It can be fitted with remote controls if required and is robust and easily maintained.
PLF315 - an external short rise scissor lift operating on 12 volt battery power so can be operated even if there is a power outage. It has a platform size of 1500mm x 1500mm and can carry up to 500kg to a height of 1m. It can be fitted with remote controls if required and is robust and easily maintained.
Benefits
- Durable solid construction and stable
- 4 options of entry/exit in the one unit
- Very reliable and simple to service
- Safe low voltage electrical controls
- Operates when mains power fails
- Requires single phase power point
- Compact design
- Automatic folding ramp & arm
- Minimal site disruption for installation
- Easy to install or remove from the site
- Self contained hydraulic power pack
- Includes key isolating switch
Operational features
- 3 person capacity (500 kg)
- Lift height up to 1.0 m
- Simple, easy to operate controls
- Controls on platform
- Optional controls on landing/s
- Electro-hydraulic (oil) operated
- Covered mast for safety
- Entry/exit points are changeable
- Folding barrier arm at top level
- Larger platform available
Standard features
| Item | Description |
| Capacity | 500 kg (3 Person) |
| Lift height | Up to 1.0m |
| Speed | 50 mm/second (12 seconds for a 1.0 m travel) |
| Usable platform size | PLF 312 - 1200 x 1150 mm PLF 315 - 1200 x 1500 mm |
| Foot print size - PLF 312 | With no ramp - 1215 x 1455 mm With ramp folded up - 1320 x 1455 mm With ramp folded down - 1615 x 1455 mm |
| Foot print size - PLF 315 | With no ramp
- 1515 x 1455 mm
With ramp folded up - 1620 x 1455 mm With ramp folded down - 1915 x 1455 mm |
| Concrete pad size | 1800 x 2100 mm (standard ramp) |
| Height of unit | Maximum height of the control wall in lowered position – 1260mm Max. height with the barrier arm fully raised – 2400mm |
| Key isolating switch | Removable to prevent unauthorized use of the lift |
| Folding arm and ramp | Fitted to the lower entry side of the lift |
| Folding arm | Fitted to upper level |
| Push button controls | One for each operation positioned for ease of operation on control panel |
| Handrail | Fitted below the control panel for stability of the user |
| Manual lowering | Fitted to all models in case of total power failure |
| Barriers | Fitted to prevent access or entrapment |
| Battery operation | Will continue to operate up and down if the mains power fails |
| Charger Unit | Mounted separately Power required 1 single phase 10 A RCD power point to operate battery charger |
| Other safety features | Speed control valve, hydraulic burst valve, manual lowering valve, over run restrictors, toe guard, 12 V DC controls |
| Construction | Heavy duty steel frame with aluminium deck and rails |
| Owners manual | Includes maintenance check sheet & operation instructions |
| Installation | Requires a level concrete base 1700 mm x 2000 mm as standard The unit can be fitted indoors or outdoors |
| Shipping Size & Weight | PLF 312 - 2.85m3 & 298kg PLF 315 - 3.54m3 & 298kg |
Additional options
| Longer ramp | Can be supplied for clients who need a more gradual incline |
| Remote controls | Either hard wired fixed or cordless pendant options are available |
| Lighting | Can be fitted to the Platform but recommended on the house |
| Landing doors | Automatic or manual operated doors can be supplied |
| Spare key | Readily available if required |
| Solar powered | A solar powered charging system can be supplied instead of 240 V |
| Colour finish | Select your colour for the finish of the panels – The std. is Charcoal |
| Custom build | Quinn’s can manufacture the unit to suit your needs |
